Production -
S.No.
MACHINE
OPERATION
QTY
MAXIMUM JOB ENVELOPE
ACCURACY / RESOLUTION
INDUSTRIAL APPLICATION
AVAILABILITY
1
CNC Turning
Cylindrical Job Work
05
±0.010 mm
Shafts, Bushes, Sleeves, Hubs, Flanges, Automotive Components
Yes
2
CNC Turning
Cylindrical Job Work
05
±0.005-0.007 mm
-
Yes
3
CNC VMC
Precision prismatic parts and fixtures
04
±0.01 mm
Fixtures, Die Plates, Mold Bases, Precision Blocks, Machine Parts
Yes
6
Conventional Milling
Prismatic Parts & fixture
10
±0.05 mm
Keyways, Slots, Tooling Components, Maintenance Parts
Yes
7
Surface Grinding
Surface Finishing in Flat/Prismatic job Work
05
±0.005 mm
Die Plates, Precision Flat Components, Gauge Plates
Yes
8
Cylindrical Grinding
Surface Finishing in Cylindrical Job Work
03
±0.005 mm
Precision Shafts, Rollers, Spindles, Hardened Components
Yes
9
Conventional Lathe
Cylindrical Job Work
10
+0.1 mm
General Engineering Parts, Repair Jobs, Prototype Components
Yes
10
Die Sinking EDM (GF)
Die & Mold Cavity Machining in Very Hard Job
01
±0.005 mm
Injection Mold Cavities, Punch & Die, Press Tools, Intricate Profiles
Yes
11
Die Sinking EDM(ONA)
Die & Mold Cavity Machining in Very Hard Job
01
±0.005 mm
Injection Mold Cavities, Punch & Die, Press Tools, Intricate Profiles
Yes
12
5 Axis CNC
Multiaxis Machining in one Setting (Precision Machining)/Aerospace and complex geometry parts
01
±0.006 mm
Complex Die & Mold Parts, Impellers, Aerospace Components, Multi-side Precision Parts
Yes
13
Vacuum Heat Treatment
Vacuum Hardening & Annealing
01
-
Hardening of Dies, Mold Components, Tool Steel Parts (Up to 55 HRC)
Yes
14
CNC Cylindrical Grinding
Cylindrical Grinding (OD/ID)
01
±0.003 mm
Heavy Duty Precision Shafts, Hardened Components
Yes
Services -
S.No.
MACHINE
OPERATION
QTY
MAXIMUM JOB ENVELOPE
ACCURACY / RESOLUTION
INDUSTRIAL APPLICATION
AVAILABILITY
1
CMM
High Precision Inspection
01
±0.002mm (approx)
Precision Dimensional Inspection, Quality Assurance
Yes
2
SLS 3D Printer
Layer-by-Layer Additive Manufacturing of Complex Functional Parts Using Powder Fusion
01
±0.2 mm
Rapid Prototyping and Production of Complex Functional Components, Jigs, Fixtures & Customized Parts
Yes
3
Artec 3D Scanner
Non-Contact Digital Measurement and Reverse Engineering of Physical Objects into Accurate 3D Models
01
±0.1 mm Accuracy up to 500mm
Reverse Engineering, Quality Inspection, Product Design, Rapid Prototyping, Automotive, Aerospace, Medical, Tool & Die, Heritage Preservation
Yes
Production -
Vacuum Heat Treatment Machine
OPERATION : Vacuum Hardening & Annealing
-
MAXIMUM JOB ENVELOPE : 1150 x 850 x 850
-
TABLE SIZE (MM) : 1200 x 900 x 900
-
INDUSTRIAL APPLICATION : Hardening of Dies, Mold Components, Tool Steel Parts (Up to 55 HRC)
5 Axis CNC Machine
Multiaxis Machining in one Setting (Precision Machining)/Aerospace and complex geometry parts
-
MAXIMUM JOB ENVELOPE : 900 x 850 x 250
-
TABLE SIZE (MM) : 900x750
-
AXIS TRAVEL(MM) : X1050/Y900/Z 600
-
INDUSTRIAL APPLICATION :Complex Die & Mold Parts, Impellers, Aerospace Components, Multi-side Precision Parts
Die Sinking ONA EDM (Electric Discharge Machine)
OPERATION : Die & Mold Cavity Machining in Very Hard Job
-
MAXIMUM JOB ENVELOPE : 500 x 300 x 180
-
TABLE SIZE (MM) :1200 x 800
-
AXIS TRAVEL(MM) : X600/Y400/Z400
-
INDUSTRIAL APPLICATION : Injection Mold Cavities, Punch & Die, Press Tools, Intricate Profiles
Cylindrical Grinding Machine
OPERATION : Surface Finishing in Cylindrical Job Work
-
MAXIMUM JOB ENVELOPE : Ø130 x 500
-
AXIS TRAVEL(MM) : X100/Z450
-
INDUSTRIAL APPLICATION : Precision Shafts, Rollers, Spindles, Hardened Components
Die Sinking EDM (GF)
OPERATION : Die & Mold Cavity Machining in Very Hard Job
-
MAXIMUM JOB ENVELOPE : 250 x 200 x 100
-
TABLE SIZE(MM) : 500 x 350
-
AXIS TRAVEL(MM) : X350/Y200/Z250
-
INDUSTRIAL APPLICATION : Injection Mold Cavities, Punch & Die, Press Tools, Intricate Profiles

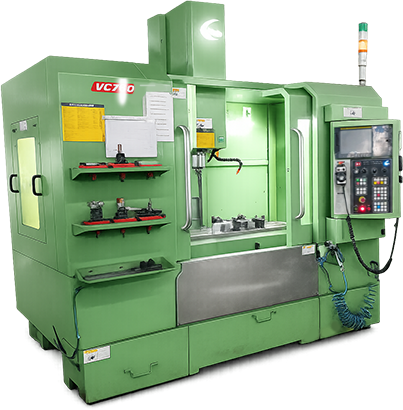

CNC VMC Machine
OPERATION : Precision prismatic parts and fixtures
-
MAXIMUM JOB ENVELOPE : 700 x 350 x 180
-
TABLE SIZE(MM) : 1270 x 305
-
AXIS TRAVEL(MM) : X760/Y400/Z400
-
INDUSTRIAL APPLICATION : Fixtures, Die Plates, Mold Bases, Precision Blocks, Machine Parts
CNC Turning Machine
OPERATION : Cylindrical Job Work
-
MAXIMUM JOB ENVELOPE : Ø200 x 320 (Outer feature) / Ø200 x 180 (Internal feature)
-
AXIS TRAVEL(MM) : X150/Z425
-
INDUSTRIAL APPLICATION : Shafts, Bushes, Sleeves, Hubs, Flanges, Automotive Components
Conventional Lathe Machine
OPERATION : Cylindrical Job Work
-
MAXIMUM JOB ENVELOPE : Ø200 x 600 (Outer feature) / Ø120 x 280 (Internal feature)
-
AXIS TRAVEL(MM) : X150/Z700
-
INDUSTRIAL APPLICATION : General Engineering Parts, Repair Jobs, Prototype Components
Conventional Milling Machine
OPERATION : Prismatic Parts & fixture
-
MAXIMUM JOB ENVELOPE : 700 x 200 x 180
-
TABLE SIZE(MM) : 1555 x 315
-
AXIS TRAVEL(MM) : X800/Y230/Z400
-
INDUSTRIAL APPLICATION : Keyways, Slots, Tooling Components, Maintenance Parts
Surface Grinding Machine
OPERATION : Surface Finishing in Flat/Prismatic job Work
-
MAXIMUM JOB ENVELOPE : 600 x 230 x 230
-
TABLE SIZE(MM) : 625 x 220
-
AXIS TRAVEL(MM) : 625 × 220
-
INDUSTRIAL APPLICATION : Die Plates, Precision Flat Components, Gauge Plates
Cylindrical Grinding Machine
OPERATION : Surface Finishing in Cylindrical Job Work
-
MAXIMUM JOB ENVELOPE : Ø130 x 500
-
AXIS TRAVEL(MM) : X100/Z450
-
INDUSTRIAL APPLICATION : Precision Shafts, Rollers, Spindles, Hardened Components
Services -
Coordinate Measuring Machine
OPERATION : High Precision Inspection
-
MAXIMUM JOB ENVELOPE : 800 x 900 x 700
-
AXIS TRAVEL(MM) : X900/Y1000/Z800
-
INDUSTRIAL APPLICATION : Precision Dimensional Inspection, Quality Assurance
SLS 3D Printer
OPERATION : Layer-by-Layer Additive Manufacturing of Complex Functional Parts Using Powder Fusion.
-
BUILD VOLUME : 165 × 165 × 300 mm
-
LASER : 30W Ytterbium Fiber Laser
-
LAYER THICKNESS : 110 microns
-
INDUSTRIAL APPLICATION : Rapid Prototyping and Production of Complex Functional Components, Jigs, Fixtures & Customized Parts
Artec 3D Scanner
OPERATION : Non-Contact Digital Measurement and Reverse Engineering of Physical Objects into Accurate 3D Models
-
INDUSTRIAL APPLICATION : Reverse Engineering, Quality Inspection, Product Design, Rapid Prototyping, Automotive, Aerospace, Medical, Tool & Die, Heritage Preservation.
